Lightweight Low-Vibration Rubber Crawler Chassis For Forestry Machinery & Small-Scale Mining Equipment

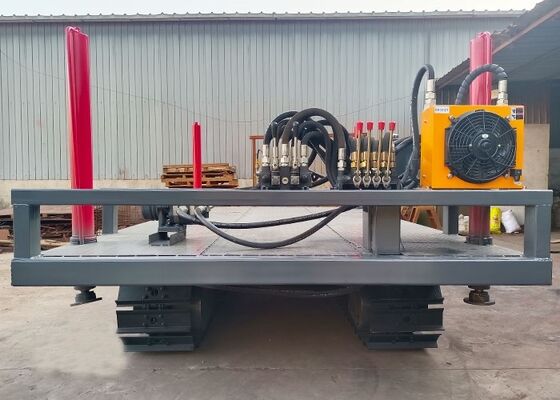

Imagem Grande : Lightweight Low-Vibration Rubber Crawler Chassis For Forestry Machinery & Small-Scale Mining Equipment

Detalhes do produto:

Lugar de origem:	Jinzhou, província de Hebei
Marca:	Shitan
Certificação:	ISO
Número do modelo:	ST-1

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	Customzied Quotation list
Detalhes da embalagem:	embalagem exportada
Tempo de entrega:	5 dias após o pagamento avançado
Termos de pagamento:	T/T, União Ocidental
Habilidade da fonte:	2000 grupos/ano

Contato

Descrição de produto detalhada

Nome do produto:	Chassi de Esteiras	Tipo de faixa:	Esteira de borracha ou esteira de aço
Peso:	TA 3	Material da esteira rolante:	Borracha natural de alta resistência e resistente ao desgaste (NR) + composto de borracha sintética
Capacidade de carga:	2 MT -5 MT	largura:	Personalizado
MOTOR:	Motor Diesel	Altura:	1,5,1 ou 0,5 metros
Destacar:	lightweight rubber crawler chassis , low-vibration crawler undercarriage , forestry machinery crawler track

Rubber & Steel Crawler Chassis - Customizable Undercarriage Solutions for Construction & Mining Machinery

Product Overview

We specialize in high-performance rubber and steel crawler chassis/undercarriages, engineered for a wide range of equipment including drilling rigs, excavators, agricultural machinery, and mining tools. Our products are tailored to adapt to diverse terrains across Southeast Asia, Africa, and the Middle East, balancing durability, efficiency, and cost-effectiveness to meet global procurement demands.

Core Product Advantages

1. Rubber Crawler Chassis

Key Benefits: Low ground pressure (≤0.15 MPa) protects soft surfaces; noise-reducing (≤65dB) for urban construction; anti-skid & shock-absorbing for stable operation; lightweight for easy transportation and installation
Applicable Scenarios: Mini drilling rigs, small excavators, forestry machinery, agricultural harvesters, urban utility equipment

2. Steel Crawler Chassis

Key Benefits: High load-bearing capacity (up to 50 tons); abrasion & corrosion-resistant for harsh terrain; reinforced steel structure for mining/quarry work; modular design for quick maintenance
Applicable Scenarios: Large drilling rigs, heavy excavators, mining drills, deep well exploration equipment, quarry machinery

Technical Parameter Table

Specification	Rubber Crawler Chassis	Steel Crawler Chassis
Load Capacity	0.5-10 tons	5-50 tons
Material	High-quality wear-resistant rubber	High-tensile manganese steel
Ground Pressure	≤0.15 MPa	0.2-0.5 MPa
Service Life	3,000-5,000 working hours	8,000-12,000 working hours
Customization	Size/load/connection mode	Structure/load/anti-corrosion coating

Customization Services

We offer flexible OEM/ODM solutions:

Customize size, load capacity, and connection interfaces to match your equipment
Add anti-corrosion coatings (for steel chassis) or anti-slip patterns (for rubber chassis)
Adjust weight and structure for special terrain needs (desert, rainforest, mountain)

After-Sales Guarantee

12-month warranty for core components; free replacement for non-human damage
Overseas spare parts warehouses in Malaysia and Nigeria for quick delivery (7-15 days)
24/7 technical support; on-site installation guidance available for bulk orders

Cooperation Cases

Our products have been supplied to 500+ clients in 30+ countries, including bulk orders for drilling rig manufacturers in Indonesia and mining equipment companies in South Africa, with a 98% customer satisfaction rate.

Inquiry Now

Contact our sales team to get a free quote within 24 hours. We support sample testing and small-batch trial orders to ensure product compatibility with your machinery
